Titanium and its alloy have become core machining materials due to their high strength-to-weight ratio, relatively low density, high biocompatibility, corrosion resistance, and non-magnetic properties. Product engineers across industries such as military, medical, aerospace, automotive, and industrial machinery widely use this light metal for different purposes.
However, as titanium alloys increase in popularity across different industries, this CNC material poses specific challenges that require expertise and sophisticated CNC machines to attain the desired geometry and tolerances. Comprehending the CNC titanium machining process helps product teams efficiently produce precise and high-quality machined titanium parts for various applications.
This article explores titanium CNC machining, its importance, and challenges of CNC machining titanium parts. Read on to the end to discover expert tips for successful CNC machining titanium and compatible surface finishes for machined titanium.

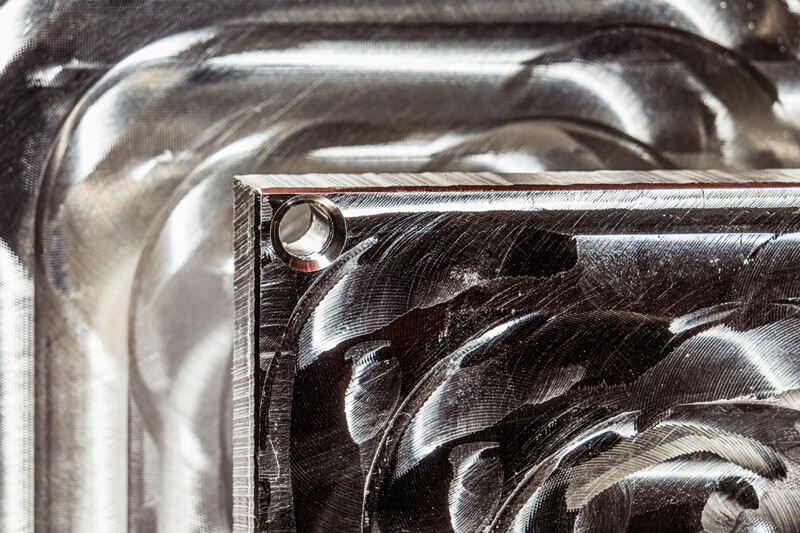

Overview of Titanium CNC Machining
Titanium is a silvery transition metal first found in the United Kingdom in the 18th century. It is one of the most popular and versatile machining materials suitable for applications that demand weight reduction and enable high-performance alloy production. This material is available in different grades and exhibits various desirable properties. They include biocompatibility, non-toxic, corrosion resistance, low weight, and strength, which will dictate your choice of titanium grade for CNC machining.
Despite the challenges of CNC machining titanium components, these machined components are often durable, recyclable, rust and chemical-resistant. Even though other metals have a higher degree of machinability, design engineers embrace titanium as it provides a distinct combination of mechanical performance and formability.

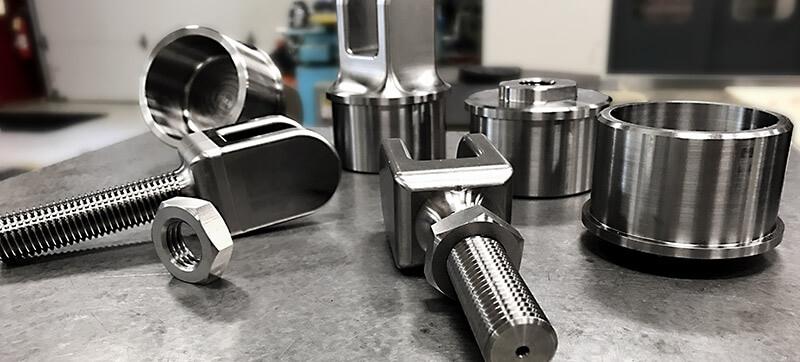

Importance of CNC Machining Titanium Parts
The CNC machining technique is a reliable and robust manufacturing technology that offers desirable outcomes in producing titanium parts. Here are some of the benefits of CNC machining titanium workpieces:
Precision and Accuracy
CNC machining techniques enable the production of machined parts with desired tolerances critical for high-precision applications, including medical devices and aerospace. Similarly, advanced CNC machines can reproduce the same parts with the same accuracy and consistent quality, which is essential for high-volume production, ensuring they meet strict industry standards and design requirements.
Efficiency and Productivity
CNC machining is an automated process that allows continuous operation, reducing the need for operator intervention. Consequently, it optimizes efficiency and increases productivity, significantly reducing lead times and ensuring faster delivery of finished titanium parts.
Applications in High-Tech Industries
High-precision titanium parts are essential in advanced applications in high-tech industries such as aerospace, automotive, industrial machinery, marine, and medical. CNC-machined titanium parts help achieve the desired weight reduction, biocompatibility, reliability, and strength.
Innovations and Advancements
CNC machining processes rely on sophisticated technology, including high-speed spindles, advanced software, and multi-axis capabilities, to fabricate titanium parts. Similarly, there have been consistent advancements in CNC machining processes, tooling, and cooling systems to increase the efficiency and quality of machined titanium parts, fostering innovation across industries.
Limitations of CNC Machining Titanium
Despite being a robust CNC material common in different industries, CNC machining titanium poses inevitable setbacks such as:
Residual and Hardening Stresses
Titanium alloys’ crystalline structure makes them highly inflexible, resulting in machining complications. Their crystalline structure can cause increased cutting force during CNC machining, reducing machining ease and increasing the risk of residual stresses.
High Chemical Reactivity and Galling
Certain gasses can react with titanium alloys during CNC machining, causing complications like surface oxidation and embrittlement. It weakens the machined parts and affects their resistance to corrosion properties. Titanium and its alloys exhibit a low modulus of elasticity, which makes them gummy during machining. Consequently, titanium often adheres to the cutting tools, causing failure and damage to the workpiece and tool. In addition to tool damage, galling deteriorates the quality of the titanium machined parts’ surface finish.
Heat Buildup and Cutting Forces
One of the biggest difficulties associated with CNC machining titanium parts is maintaining a cool temperature during the process. Due to titanium’s low thermal conductivity, the titanium workpiece builds up heat faster when the cutting tool cuts at a higher speed. Consequently, the tool wears out quicker and adversely impacts the cut surface’s quality if not properly handled.
Experts advise using a bigger chip load and reduced RPM on the CNC machine when machining harder titanium alloys. In addition, use a high-pressure coolant system to cool your cutting tools, ensuring tooling efficiency and production of superior-quality titanium parts. Furthermore, titanium alloys require higher cutting forces, making them complex to machine. These cutting forces result in tool wear, defective parts, extreme vibration, deteriorating product, and surface finish quality.
Expert Tips for CNC Machining Titanium
Due to its complications, most CNC machine shops and professionals sometimes avoid CNC machining titanium. Nevertheless, many manufacturers utilize titanium in designing precise and top-quality parts because of the material’s distinct combination of material properties. We’ll explore helpful tips for efficient titanium CNC machining:
Cutting fluid\coolant

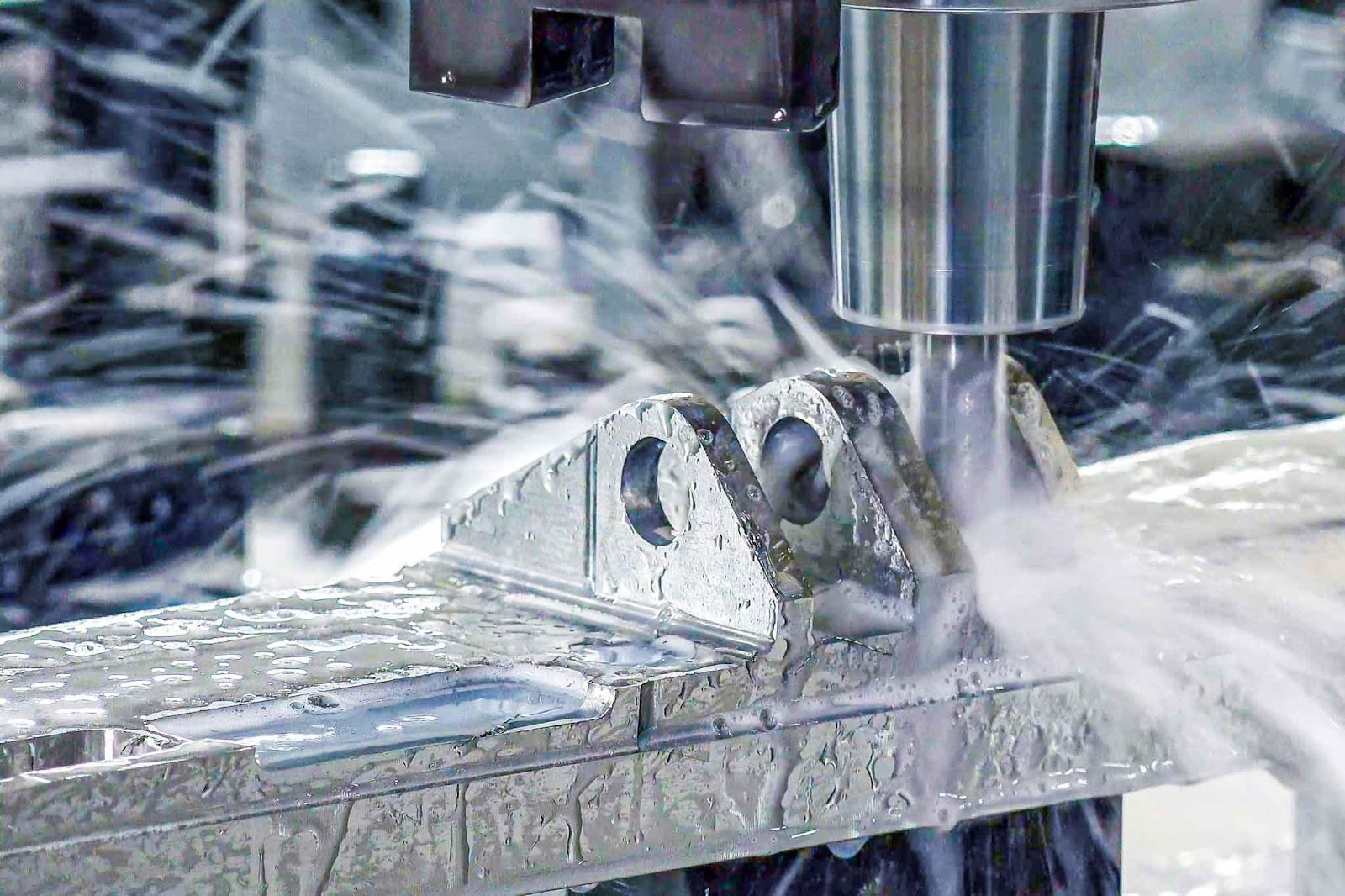

Using a high-pressure CNC coolant system designed mainly for titanium machining helps ensure lubrication, effective heat dissipation, and achieving desired tolerances. Direct the coolant/cutting fluid to the cutting area. Through-tool cooling or flood cooling ensures effective coolant delivery. However, the coolant system must be monitored regularly to ensure optimal performance and avoid contamination.
Workholding
Since titanium workpieces are usually prone to chattering or vibration, it is only right to ensure they are fastened tightly to mitigate vibration and make titanium machining easier. Use versatile and rigid work-holding setups and fasten them tightly to avoid workpiece deflection.
To increase stability, you can consider using custom fixtures explicitly designed to accommodate the geometry of the titanium part. Additionally, using superior-quality CNC machines with remarkably stiff tooling configurations and shorter cutting tools helps significantly reduce deflection.
Cutting Tools
CNC tools are made of varying materials, diameters, and cutting edges. Choosing the suitable tool cutter for your CNC machined titanium parts is essential. However, tool makers have researched unique means of optimizing the machinability of titanium alloys due to the increased demand for titanium parts.
CNC tools with heat-resistant titanium aluminum nitride (TiAlN) or titanium carbo-nitride (TiCN) coatings can help ensure longer tool life and reduced friction. Consider using polycrystalline diamond (PCD) or high-quality carbide tools because they are exceptionally hard and resistant to wear.
More so, machining experts must choose titanium-specific CNC cutting tools with the highest quality and regularly check and replace worn-out equipment. Additionally, consider using a tool with smaller diameters and more cutting edges to ensure a consistent material removal rate while mitigating heat accumulation.
Cutting Parameters
Temperature control is essential when CNC machining titanium. When machining titanium parts, you must consider your spindle speeds, feed rates, and chip loads. It generally includes reducing the applied stress on CNC tools and equipment and not working in one spot for too long. Increasing axial cut depth while reducing radial engagement is an alternate cutting approach that helps mitigate machining temperatures and optimize efficiency.
Experts often utilize moderate feed rates and lower cutting speeds to minimize heat buildup and cutting tool wear.
Utilizing a regular stream of high-pressure coolant aimed at the cutting area is one of the simplest ways machinists cool the workpiece and CNC machine tool during machining. Blasting the chips from the cutting zone won’t make them stick to your CNC machining equipment.
Workpiece Materials
Titanium is available in different grades, each with a distinct combination of properties. The Ti-6Al-4V is a standard titanium grade design experts widely use for various applications due to its excellent machinability and strength-to-weight ratio. Unlike hardened titanium or work-hardened state, machining titanium workpieces in an annealed state can improve machinability.
Safety Precautions
Hazards can occur when CNC machining titanium parts; hence, it is imperative to implement safety precautions during the process. Consider wearing necessary personal protective equipment (PPE), including hearing protection, safety glasses, and gloves. Ensure the machine guards are in place to prevent tool breakage and protect yourself from flying chips. Ensure appropriate fire suppression systems are in place because of titanium’s high flammability properties.
Surface Finishing
CNC-machined titanium parts are compatible with a wide range of surface finishing. Employ suitable deburring tools and methods to eliminate burrs without compromising the workpiece’s quality. Performing finishing passes with lower depths of cuts and feed rates helps to attain a smoother surface finish. Furthermore, additional polishing techniques like ultrasonic polishing or abrasive flow machining should be considered to achieve superior-quality surface finishes.
CNC-machined titanium components are compatible with an extensive range of surface finishing for aesthetic and functional enhancements. Typical Titanium parts surface finishes include:
- PVD coating
- Polishing
- Bead blasting
- Painting
- Electrophoresis
- Brushing
- Metallizing
- Powder coating
- Chroming
- Smoothing
Conclusion
CNC machining is an effective process optimal for processing titanium parts with desired geometries and features. Its capabilities perfectly match titanium’s unique properties, ensuring cost-effectiveness, efficiency, and high precision. Moreover, titanium CNC machining allows the production of intricate, high-quality titanium parts required for advanced applications across multiple high-tech industries.
